    100L/min Q460 NM360 Excavator Crusher For DH450

    Ask Lasest Price
    Brand Name : HUITONG
    Model Number : Hydraulic concrete pulverizer
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 300 Pieces per Month
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

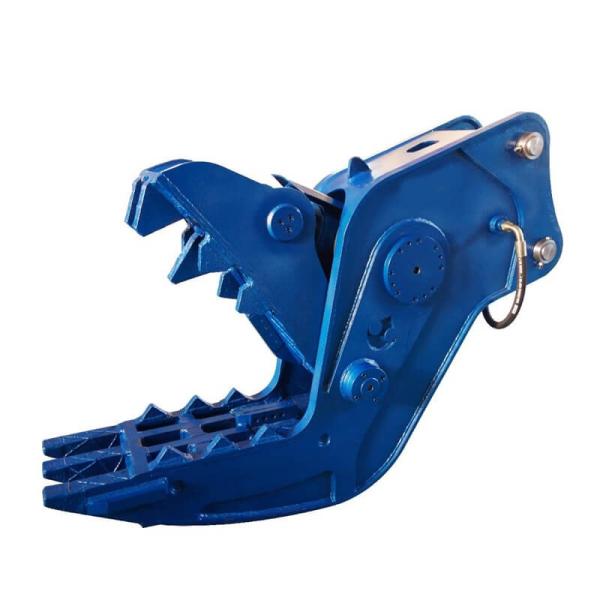

    100L/min Q460 NM360 Excavator Crusher For DH450

    Factory Direct Sales Demolition Necessary Excavator Crusher for DH450


    Production Description:

    Engineered for exceptional fragmentation, the RanSun Hydraulic Pulverizer s the perfect tool for secondary demolition and recycling of concrete. High grade steel with special seals keep dust and other debris from pins, ensuring long life and low maintenance.

    A high performance cylinder reduces the time needed to open and close jaws, increasing productivity while two replaceable steel bar cutters provide maximum efficiency in cutting rebar.


    Model
    HT10
    HT18
    HT25
    HT35
    HT50
    Oil Pressure(l/min)
    100-180
    180-200
    200-220
    220-280
    280-320
    Weight(Kg)
    1100
    2000
    2800
    4000
    5000
    Rotating
    360 rotary
    360 rotary
    360 rotary
    360 rotary
    360 rotary
    Apply to(Ton)
    10-18
    18-26
    26-32
    32-45

    45-60


    Material quality:

    HARDOX400

    Wear resistant welding material
    Complete crushing of concrete without adhesion.

    Speed:

    This machine is a collection machinery, the electricity and the hydraulic pressure is a body completely automatic installment.
    Turn on-off 15-17 times per minute

    Shear:

    High shear resistance, no edge warp.
    Hydraulic controlled, easy and safe to operate, powerful with high efficiency.

    Installation structure:

    Easy installation structure makes the construction process simple and easy.


    Product Features

    HT hydraulic pulverizer is composed with body, hydraulic cylinder, movable jaw and fixed jaw. The external hydraulic system offer hydraulic pressure for the hydraulic cylinder to make the movable jaw and fixed jaw open and close to achieve the effect of crushing objects.

    1.Large bore dual cylinders: Strong power and excellent durability. 2. Speed up valve: Fast cycle time. 3. Lighter and stronger structure: High tensile special steel plate. 4. 360 degree hydraulic rotation optional. 5. Working efficiency is two or three times of hydraulic breaker 6. Large opening design,working easily and conveniently. 7. Equipped with steel bar cutter, fufill crushing and cutting off exposed reinforced steel at same time. 8. Low noise, can be used for city and high-tech zone demolition project.

    Customer Service

    1. Before signing an official contract with our customers, we will help to analyze and provide professional solutions, recommdations based on the project information provided by customers.

    2. An experienced tech-team are ready to meet your special requirements.

    3. Your inquire related to our products or price will be replied in 24 hrs

    4. Keeping our customers update about the orders' production process and arrange quality checking in the workshop is available if you want.

    5. Online techinical supports are available for the whole product life. Oversea services are available with extra fees.

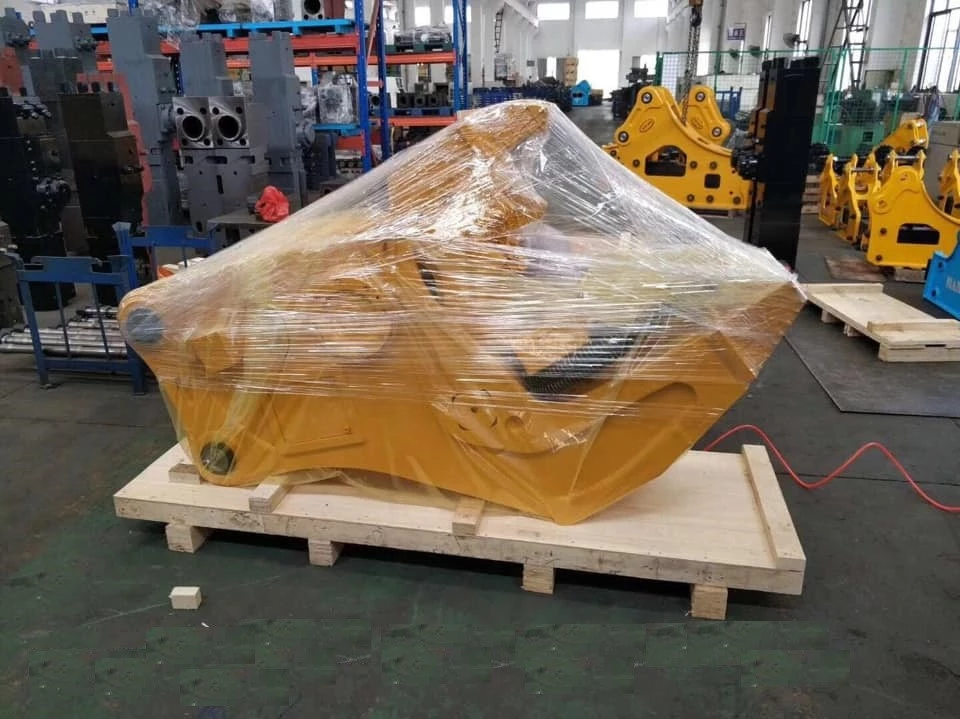

    Packing:

    International standard pallet or wood case.
    1. one 20GP can load about 12-14 pieces 1.0m3 or 1.2m3 buckets for 20ton excavator(Width less than 42 inches )
    2. one 40HC can load about 26-28 pieces 1.0m3 or 1.2m3 buckets for 20ton excavator;
    3. one 20GP can load about 8 pieces 1.6m3 buckets for 30ton excavator;
    4. one 40HC can load about 16 pieces 1.6m3 buckets for 30ton excavator.


    SpecifiPCions

    Model
    HT04
    HT06
    HT08
    HT10
    Dead-weight(kg)
    660
    1350
    1750
    2750
    Max.Opening(mm)
    577
    730
    900
    1015
    Length(mm)
    1720
    2000
    2150
    2374
    Width(mm)
    658
    660
    706
    860
    Max,crushing force(T)
    83
    105
    165
    225
    Max.Shear Force(T)
    126
    165
    210
    305
    Blade Length(mm)
    120
    150
    180

    200

    Driving Oil Pressure(kg/cm2)
    230
    300
    320
    380
    suitable for excavator(T)
    6-12
    12-18
    18-26
    26-30
