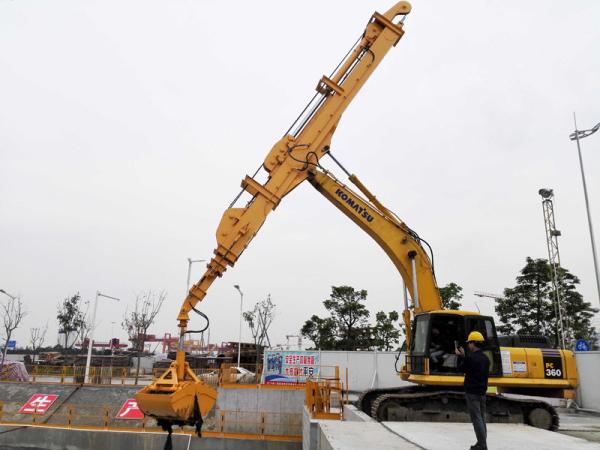

    23ton Excavator Mounted Clamshell Telescopic Arm

    23ton excavator mounted clamshell telescopic arm With Clamshell

    Product Description


    The telescopic arm is also called a barrel arm could be Sup-plied by HUITONG. Make Perfect Fit is always Our Team 's Aim. With Over Ten Years Welding Experience Welders and Machining Workers Striving for Perfection on Every Details, HUITONG Keep Providing a Large Quantities of Strong Long Reach Boom & Arm with Best Cost Performance Globally


    SPECIFIPCIONS FOR 23TON EXCAVATOR MOUNTED CLAMSHELL TELESCOPIC ARM
    Model
    0
    HT220
    HT260
    System
    Hydraulic and Steel Wire Rope
    Weight
    3600kg
    4600kg
    5600kg
    Clamshell Bucket Capacity
    0.3m3
    0.6m3
    1.2m3
    Max. Vertical Digging Depth
    15200mm
    22490mm
    27180mm
    Min. Truning Radius
    3980mm
    4485mm
    5460mm
    Clamshell Bucket Weight
    520kg
    990kg
    1600kg
    Matched Excavator
    15ton+
    23ton+
    36ton+
    Bucket (LxWxH) (close)
    1600x765x2930mm
    1995x765x3135mm
    1995x1200x3135mm
    Telescopic Arm (LxWxH)
    6973x872x1492mm
    9643x872x1492mm
    12390x872x1492mm

    Product Features

    1) Quick and Conveninet City Vertical Solid Construction Tooling is coveninet for small and soild construction space .


    2) Widely used in the deep foundation pit of bridge, Metro, and Metro covered excavation, dredging excavation works.


    3) Easy maintenance, low cost and higj yield; Reliable telescopic structure of steel wire rope, long service life.


    4) Designed in strict accordance with the safety standard of the EU EN16228, satisfying the requirements of dynamic and static stability, ensuring the construction safety.


    Product Advantages

    Obtained more than 40 patents and exported to more than 40 countries.

    A professional R&D team with 10 years of industry experience.

    Passed ISO9001 quality management system certifiPCion, obtained CE certifiPCion.

    Engineer overseas service. Ensure the quality of the machine and good after - sales service.

    Manufacturer of the most complete series of small rotary drilling rig in China.

    The largest export volume of small rotary drilling rig in China.

    The most rotary drilling rigs in Australian market.

    First brand of small rotary drilling rig in Thailand market.



    Customer Service

    1. Before signing an official contract with our customers, we will help to analyze and provide professional solutions, recommdations based on the project information provided by customers.


    2. An experienced tech-team are ready to meet your special requirements.


    3. Your inquire related to our products or price will be replied in 24 hrs


    4. Keeping our customers update about the orders' production process and arrange quality checking in the workshop is available if you want.


    5. Online techinical supports are available for the whole product life. Oversea services are available with extra fees.


    6. Shipment support is provided for our customer.


    Packing and Shipping

    1.We pack it by film at first, then secure it inside the container by fixing to the container wall through steel wire.


    2.One container can load 3 complete sets(we use rack to hold the upper sets).


    3.Production leadtime is 15 days for 1 set, 20 days for 3 sets.



    TYPE
    ASSEMBLY
    APPLIPCION
    Telescopic Arm
    Clam Shell bucket*1, Telescopic Arms(Quantity and Size Depends on the Total Length Requires), Pipes & Hoses
    It's generally used in excavators for deep pits or high-altitude operations.
    Extension Arm
    Extension Arm*1,Bucket*1,H-link & I-link * 1 set,Pins,Pipes & Hoses
    The size arm of the original car can achieve the purpose of quickly expanding the working range of the excavator, And can be used
