Brand Name : | HUITONG |
Model Number : | Excavator Hydraulic Hammer |
Price : | $500/pcs |
Payment Terms : | L/C, D/A, D/P, Western Union, T/T, MoneyGram |
Supply Ability : | 500 sets per months |
Delivery Time : | 6-8 days |

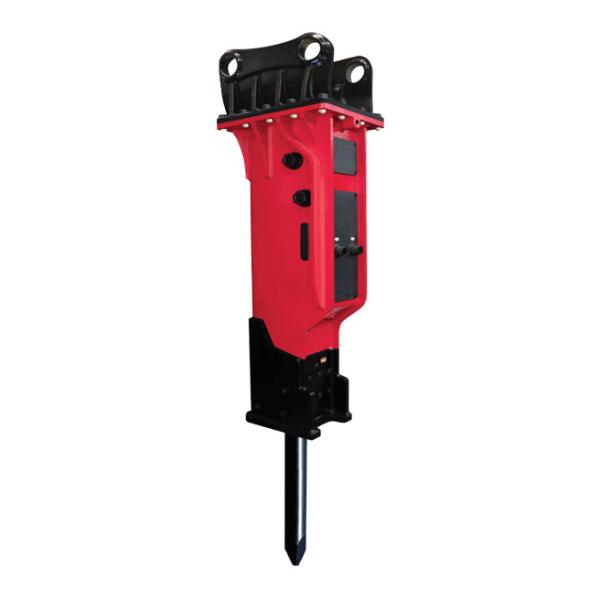

Excavator Hydraulic Breaker Hydraulic Rock Hammer For 20 To 30 Ton Excavator
Product Description
1. Selected raw material - high quality heavy duty wear resistant
steel.
2. Leading heat treatment technology. Heat resistance and abrasion
resistance are enhanced.
3. The device can adjust the flow fromexcavator and power source,
so it can adjust the impact force and beat frequency according
to different working situation.
4. High-quality and durable wear parts ,longer use, easy
maintenance.
5. Strong " hydraulic + nitrogen " impact system, increase
stability.
6. Advanced manufacturing facilities and technology, introduced
from South Korea.
7. High energy and impact frequency, High-performance optimized
hydraulic unit.
ITEM/MODEL | WEIGHT (kg) | LENGTH (mm) | PRESSURE (kg/cm2) | FLUX (L/min) | RATE (bmp) | HOSE (inch) | CHISEL (mm) | SUIT (ton) |
pc200T | 100/120 | 1100 | 90-120 | 15-25 | 700-1200 | 1/2 | 45/53 | 1.2-3.0 |
pc400T | 390 | 1347 | 110-140 | 25-45 | 500-900 | 1/2 | 68/70 | 3.0-5.5 |
pc600T | 421 | 1528 | 110-160 | 30-45 | 500-800 | 1/2 | 75 | 4.0-7.0 |
pc800T | 577 | 1920 | 120-170 | 45-85 | 400-700 | 3/4 | 85 | 7.0-14 |
pc900T | 973 | 2260 | 150-170 | 80-120 | 400-700 | 3/4 | 100 | 11-16 |
pc1600T | 1955 | 2695 | 160-180 | 120-160 | 400-700 | 1 | 135 | 19-26 |
pc1900T | 1989 | 2810 | 160-180 | 130-170 | 400-600 | 1 | 140 | 19-26 |
pc3500T | 2950 | 3152 | 160-180 | 170-220 | 250-400 | 1 | 155 | 28-40 |
pc4500T | 3160 | 3310 | 160-180 | 200-300 | 250-350 | 1¼ | 165 | 36-45 |
pc5000T | 4210 | 3400 | 160-180 | 210-290 | 200-350 | 1¼ | 175 | 40-55 |
pc5500T | 4720 | 3400 | 180-220 | 220-300 | 200-250 | 1¼ | 185 | 50-60 |
pc6500T | 4910 | 3420 | 180-220 | 230-320 | 180-200 | 1¼ | 195 | 55-65 |
pc7000T | 6100 | 3700 | 190-230 | 360-450 | 120-200 | 1¼ | 210 | 65-100 |
1. Inner is stretch film, outside is export wooden case or as
customer's request.
2.The standard free spare parts: two Chisels, two hoses, one set of
repair tools with tool box,one Nitrogen bottle, one Nitrogen
pressure gauge and one brochure.
![]() |
