    360 Degree Excavator Hydraulic Concrete Crusher 20 Ton Demolition Tools

    Ask Lasest Price
    Brand Name : HUITONG
    Model Number : Concrete Pulverizer
    Price : $ 200-2000 per pcs
    Payment Terms : Western Union, MoneyGram, T/T, D/P, D/A, L/C
    Supply Ability : 500 pcs/ moth
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    360 Degree Excavator Hydraulic Concrete Crusher 20 Ton Demolition Tools

    20 Ton Demolition Tools Excavator Hydraulic Concrete Crusher / Pulverizer


    Production Description

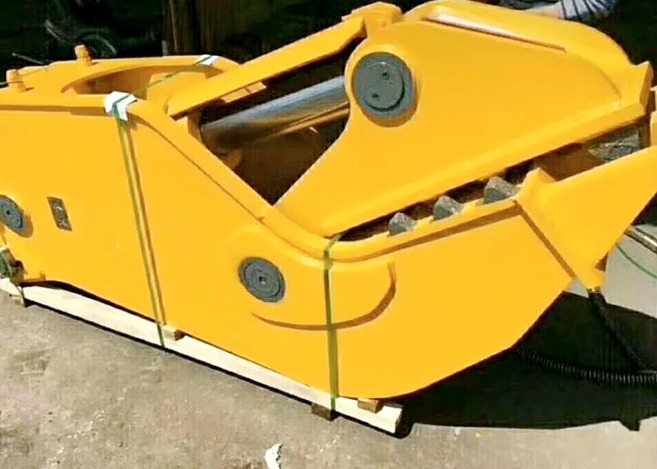

    Hydraulic pulverizer is composed with body, hydraulic cylinder, movable jaw and fixed jaw. The external hydraulic system offer hydraulic pressure for the hydraulic cylinder to make the movable jaw and fixed jaw open and close to achieve the effect of crushing objects.


    1.Large bore dual cylinders: Strong power and excellent durability.
    2. Speed up valve: Fast cycle time.
    3. Lighter and stronger structure: High tensile special steel plate.
    4. 360 degree hydraulic rotation optional.
    5. Working efficiency is two or three times of hydraulic breaker
    6. Large opening design,working easily and conveniently.
    7. Equipped with steel bar cutter, fufill crushing and cutting off exposed reinforced steel at same time.
    8. Low noise, can be used for city and high-tech zone demolition project.

    MCP600MCP800MCP910MCP1000
    Jaw openingA(mm)800105011001350
    HeightB(mm)180020302200280
    WidthC(mm)415550605660
    Jaw depthC(mm)7308109001160

    Tip 2: Makesure of the weight of excavator, the oil flow and the working pressure of your excavator.


    MCP600MCP800MCP910MCP1000
    Excavator weight(t)10-1818-2525-3535-45
    Tool weight*(kg)1000205028503800
    Cylinder force(t)100145157197
    Force at upper tips F1
    (front teeth)
    (t)547399123
    Force in the middle F2
    (middle of blade)
    (t)79115153195
    Cutting force F3(t)155196276348
    Hydraulic working pressure(bar)280-320280-320280-320280-320
    Oil flow(l/min)100-180180-220220-280280-320
    Rotation typeNO ROT.NO ROT.NO ROT.NO ROT.
    Time of closing
    at max oil flow
    (s.)3,092,282,943,50
    Time of opening
    at max oil flow
    (s.)1,882,262,743,36
    N°of cycles per minute
    at max oil flow
    (cycles/min)12,113,210,68,7
    Hyd. ports size cylinder/1’’ SAE
    6000 p.s.i.
    1’’ SAE
    6000 p.s.i.
    1’’1/4 SAE
    6000 p.s.i.
    1’’1/4 SAE
    6000 p.s.i.
    Speed valve/OptionalYesYesYes
    Max diameter to be cut**(mm)50556065
    Blade length(mm)122180180220
    Interchangeable wear parts/NOYesYesYes
    Automatic grease system/NONONONO

    Quality is guaranteed

    Faster

    Safer

    1.12 month after-sales warranty

    2. We have the profession team (Pre-sale service, Technical team, After-sales service.) and will solve all your problems.

    3.13 years working experience in this filed.

    We are near Shanghai Port,
    Ningbo Port.
    Our hot sale products will
    be deliveied within 7days.

    1.We have joined the Trading Assurance


    2. All products are packed by plastic paper with the wooden box.


    Advantages

    1. The working efficiency is 3-5 times higher than the traditional hydraulic breaker;
    2. Larger opening, larger bite force, smaller bite gap;
    3. Adopt high strength, light and wear-resisting manganese plate, long working life;
    4. Easy to disassemble and install, unique oil circuit design, fast cylinder speed;
    5. Flexible and convenient operation, low noise and no vibration.
