    25 Tons Excavator Mounted Vibro Hammer For PC250 R250 SY250

    Ask Lasest Price
    Brand Name : Huitong
    Model Number : HT111
    Price : $20000-32000/pcs
    Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 pcs per mounth
    Delivery Time : 8-16 workdays
    • Product Details
    • Company Profile

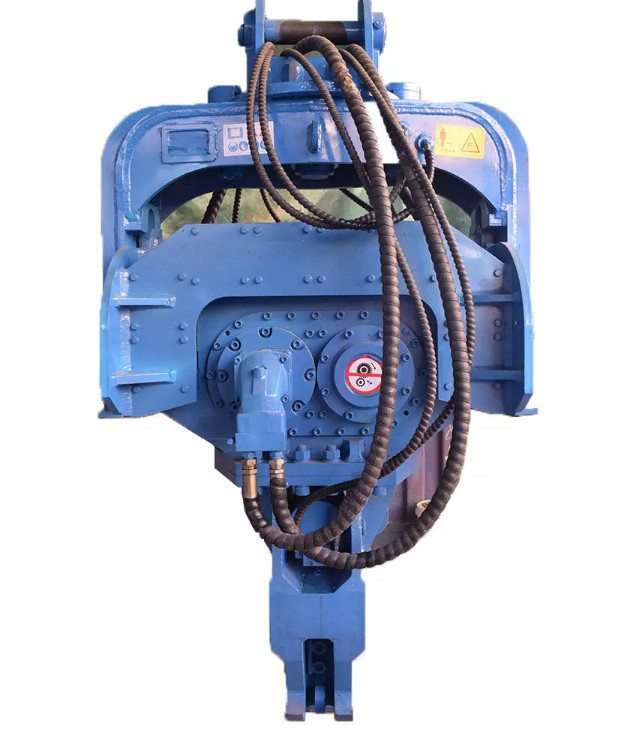

    25 Tons Excavator Mounted Vibro Hammer For PC250 R250 SY250


    25 Tons Excavator Mounted Vibratory Hammer V250 Hammer For PC250 R250 SY250


    Production Descrption

    Huitong Excavator mounted vibratory hammer can be applied for a wide range of working enviroment because of its small size and simple operation procedure, such as drainage maintenance, river-bank maintenance and marshland working wherever onshore and offshore piling job.


    High frequency hydraulic vibratory pile driver internally installed two eccentric shaft. It adopts hydraulic motor to drive and produce high-speed revolution and vertical vibration force. Through the damping rubber block to maintain a certain amplitude to cope with various types of soil and pile driving. Sheet Pile Vibro Hammer can be applied for a wide range of working enviroment because of its small size and simple operation procedure, such as drainage maintenance, river-bank maintenance and marshland working wherever onshore and offshore piling job.


    Features:

    can be installed on all kinds of excavators and make efficient, flexible and accurate pile driving in many sites.

    Suitable for different site and soil conditions

    Suitable for a wide range of piles including sheet piles, H-beams, tubular steel piles, timber piles, pre-concrete piles

    Huitong Excavator Vibro Hammer
    Model

    V250
    V300
    Eccentric moment (Nm)
    40
    85
    Amplitude (mm)
    6.8
    14
    Oil Flow (L/min)
    155~200
    200~255
    Pressure (kg/cm2)
    240~260
    240`260
    Frequency (rpm)
    2800
    2800
    Max. Centrigufal Force (kN)
    300
    570
    Max. rotation angle
    360 degrees
    360 degrees
    Vibro hammer with clamp (LxWxH) (mm)
    1300x1400x1400
    1500x1550x1700
    Vice arm (LxWxH) (mm)
    2600x650x1050
    3200x650x1150
    Total Packaging Volume
    6.97m3
    9.28m3
    Net Weight of Vibro Hammer( kg)
    2000
    2800
    Net Weight of Vice arm (kg)
    500
    650
    Total net weight (kg)
    2500
    3450
    Matched Excavator (Ton)
    20~35
    35~50

    Prosuction Details

    25 Tons Excavator Mounted Vibro Hammer For PC250 R250 SY250

    25 Tons Excavator Mounted Vibro Hammer For PC250 R250 SY250

    25 Tons Excavator Mounted Vibro Hammer For PC250 R250 SY250

    25 Tons Excavator Mounted Vibro Hammer For PC250 R250 SY250

    25 Tons Excavator Mounted Vibro Hammer For PC250 R250 SY250
