    40T Excavator Mount Driver 12 Meter Sheet Pile Hammer For Sany SY200 SY330

    Ask Lasest Price
    Brand Name : Huitong
    Model Number : HT111
    Price : $20000-32000/pcs
    Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 pcs per mounth
    Delivery Time : 8-16 workdays
    • Product Details
    • Company Profile

    40T Excavator Mount Driver 12 Meter Sheet Pile Hammer For Sany SY200 SY330

    20-40 Tons Excavator Mount Driver 12 Meter Sheet Pile Hammer For Sany SY200 SY330


    Production Descrption

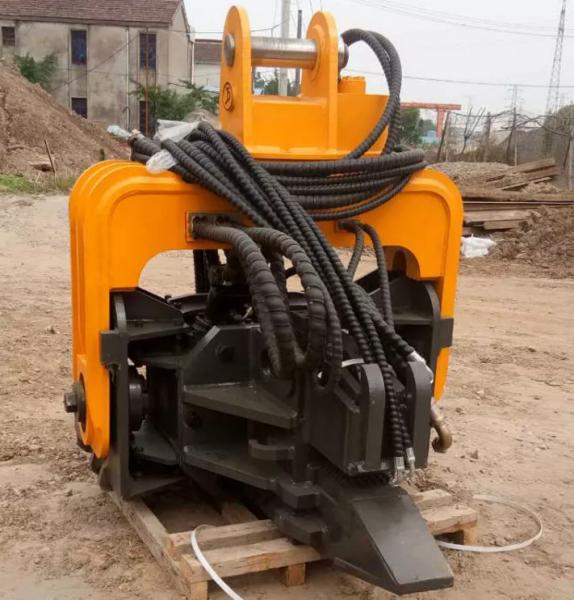

    Huitong Hydraulic Pile Hammers , also go by Vibro Hammer, Pile Driving Hammer, are widely used in many big projects, suitable for driving and extracting piles in different geological condition except the hard rock layer. widely use for workplaces, congested areas, under bridges, narrow roads, minimal noise in urban renewal. Suitable for excavator range from 18 to 50 ton


    The pile is then vibrated with high frequency vibrations so as to ‘fluidise’ the soil resisting the pile. Down-crowd force applied by the excavator boom, coupled with the self-weight of the pile and the vibrator, provides sufficient force to push the pile into the ground. Naturally, the process also works in reverse for pile extraction.


    Data/Model
    HT-250
    HT -300
    HT -350
    HT -400
    HT -450
    HT-500
    Eccentric Moment(kgm):
    4.8
    5.3
    5.8
    6
    6.5
    7
    Frequency(HZ/rpm):
    43/2800
    43/2800
    43/2800
    43/2800
    43/2800
    43/2800
    Centrifugal force(kN):
    413
    457
    500
    517
    560
    603
    Hydraulic system operation pressure(bar)
    160
    180
    220
    260
    280
    280
    Hydraulic system oil flow(lpm)
    165
    210
    235
    280
    280
    280
    Weight (kg)
    (excluding clamp and vice arm)
    1700
    1745
    2010
    2020
    2050
    2100
    Excavator Weight(kg)
    20-25
    25-30
    30-35
    35-40
    40-45
    45-50
    Size(mm):
    (measure with C16 clamp)
    1530*1360*1540
    1700*1600*1600
    Clamp model/weight(kg)
    C15/588
    C15/588
    C16/680
    C16/680
    C16/680
    C16/680
    Vice arm model/weight(kg)
    A200/2400*600*970/710KG
    A250/2870*680*970/890KG
