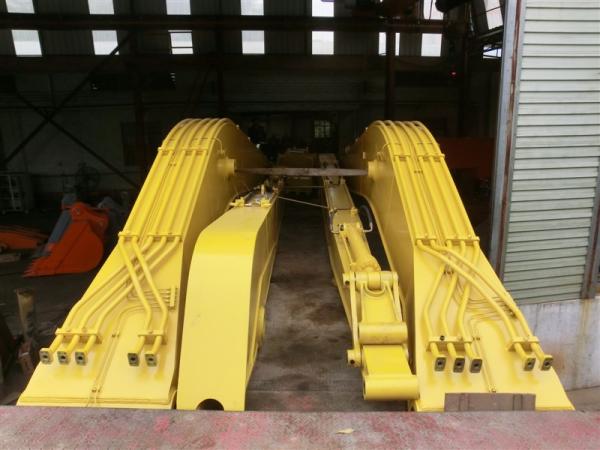

Q460D Tata Zx470 Long Reach Excavator Booms Operating Weight 9000kg

    Buy cheap Q460D Tata Zx470 Long Reach Excavator Booms Operating Weight 9000kg from wholesalers

    Buy cheap Q460D Tata Zx470 Long Reach Excavator Booms Operating Weight 9000kg from wholesalers
    • Buy cheap Q460D Tata Zx470 Long Reach Excavator Booms Operating Weight 9000kg from wholesalers
    • Buy cheap Q460D Tata Zx470 Long Reach Excavator Booms Operating Weight 9000kg from wholesalers
    • Buy cheap Q460D Tata Zx470 Long Reach Excavator Booms Operating Weight 9000kg from wholesalers
    • Buy cheap Q460D Tata Zx470 Long Reach Excavator Booms Operating Weight 9000kg from wholesalers
    • Buy cheap Q460D Tata Zx470 Long Reach Excavator Booms Operating Weight 9000kg from wholesalers
    • Buy cheap Q460D Tata Zx470 Long Reach Excavator Booms Operating Weight 9000kg from wholesalers

    Q460D Tata Zx470 Long Reach Excavator Booms Operating Weight 9000kg

    Ask Lasest Price
    Brand Name : HUITONG
    Model Number : Excavator long boom
    Price : $500-2000/PCS
    Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 SETS/months
    Delivery Time : 6-8 days
    • Product Details
    • Company Profile

    Q460D Tata Zx470 Long Reach Excavator Booms Operating Weight 9000kg

    Excavator For Hitachi Zx470 Long Reach Boom Arm Excavator Parts Tata Hitachi Long Boom


    Advantages

    With our expertise in designing and manufacturing long reach booms, you can now maximize your ROI (Return on Investment) on your existing fleet of excavators. Hundreds of customers have realized the value of long reach attachments where standard booms fail to get the necessary job done. Our long reach boom can help you to achieve 50% more digging depth and forward reach over a standard boom, saving you valuable cost and time, and maximizing your bottom line. Only structural grade tensile steel is used in our boom and stick construction, and we design it with varying grades of tensile steel depending on the nature of the appliPCion. We supply long reach front packages for a wide range of excavator models, ranging from 10 -200 metric tons (22,000 – 488,400 lbs) operating weight.


    Welding is done by robotic welding machine to ensure the highest attainable quality and consistency. Product design are accomplished by utilizing latest CAD software, simulated via advance Finite Element Analysis (FEA) tools, ensuring optimum design integrity.


    Q460D Tata Zx470 Long Reach Excavator Booms Operating Weight 9000kgQ460D Tata Zx470 Long Reach Excavator Booms Operating Weight 9000kg

    Products Description
    Excavator Operating WeightLength

    A


    Max. Reach

    B


    Max. Depth

    C


    Max. Height

    D


    Boom Height

    Approximate Bucket Capacity
    mftmftmftmftmftm3Yard3
    12-14 ton12.039′12.0039′ 4″8.3027′ 2″10.5034′ 5″2.106′ 11″0.40.52
    (26,400-30,800 lb)13.043′13.0042′ 8″9.0029′ 6″10.9035′ 9″2.106′ 11″0.30.39
    15-16 ton14.046′14.0045′ 11″10.7035′ 0″11.8038′ 8″2.307′ 6″0.40.52
    (33,000-35,200)
    20-22 ton15.550′15.5050′ 10″11.4637′ 7″13.7845′ 3″2.508′ 3″0.500.66
    (44,000-48,400 lb)16.554′16.5054′ 2″12.1639′ 11″14.4047′ 3″2.508′ 3″0.400.52
    23-27 ton17.056′17.0059′ 9″12.8041′ 11″14.9549′ 0″2.708′ 11″0.500.66
    (50,600-55,000 lb)18.059′18.0059′ 0″14.0045′ 11″15.8551′ 9″2.708′ 11″0.400.52
    28-30 ton18.059′18.0059′ 0″13.8045′ 1″15.2049′ 10″3.1010′ 2″0.600.79
    (61,600-66,000 lb)19.062′19.0062′ 3″14.0045′ 11″15.5050′ 10″3.1010′ 2″0.500.66
    33-35 ton18.560′18.5060′ 5″14.5047′ 6″15.1049′ 6″3.4011’0″0.700.92
    (72,600-77,000 lb)20.065′20.0065′ 6″16.0052′ 6″15.6051′ 3″3.4011’0″0.600.79
    40-44 ton21.068′21.0068′ 10″15.3050′ 2″15.5849′ 3″3.7012′ 2″0.801.05
    (88,000-96,800 lb)22.072′22.0072′ 2″16.2553′ 4″15.9252′ 3″3.7012′ 2″0.700.92
    45-55 ton21.068′21.0068′ 10″15.0049′ 3″15.9552′ 4″3.9512′ 11″1.001.31
    (99,000-121,000 lb)22.072′22.0072′ 2″15.8051′ 10″16.0552′ 8″3.9512′ 11″0.901.18
    60-65 ton23.075′23.0075′ 5″17.5057′ 4″17.5057′ 5″4.1013′ 6″1.201.57
    (132,000-143,000 lb)
    70-75 ton24.079′24.0078′ 8″18.1059′ 3″19.0062′ 4″4.6015′ 1″1.301.70
    (154,000-165,000 lb)
    80-90 ton25.082′25.0082′ 0″18.6061′ 00″19.2062′ 11″4.7015′ 5″1.401.83
    (176,000-198,000 lb)
    100-110 ton27.088′27.0088′ 7″20.0065′ 7″19.0062′ 4″5.0016′ 5″1.602.10
    (220,000-242,000 lb)28.092′28.0091′ 9″21.0068′ 10″20.0065′ 7″5.0016′ 5″1.401.83
    120-130 ton28.092′28.0091′ 9″21.0068′ 10″20.0065′ 7″5.5018′ 1″1.602.10
    (264,000-286,000 lb)29.095′29.0095′ 1″22.0072′ 2″20.5067′ 3″5.5018′ 1″1.401.83

    Q460D Tata Zx470 Long Reach Excavator Booms Operating Weight 9000kgQ460D Tata Zx470 Long Reach Excavator Booms Operating Weight 9000kg
